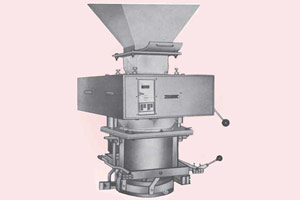

PREMIUM Bag Weigher is an essential equipment in units producing large quantity of powders and which is to be bagged for convenience in marketing. The contents are accurately weighed and both the buyer an seller can be absolutely sure of weight. This is especially in demand where the valued of products is high and the customer is critical.
The PREMIUM Bag Weigher is positioned between the source of powder (like storage bin etc.) and bag stitching machine. The filled bag can then be directly loaded on to the truck.
The operation of the Bag Weigher is very simple. The bag is positioned and clamped by bag holder. The clamping is manual in model is MS(Manual Stop) and AS(Automatic Stop) and automatic in EPS (Electro Pneumatic Stop) Model.
The filling of the bag is started by actuating the filler lever. The Bag Weigher is pre-caliberated when exact quantity of the material is filled in the bag, the flow will be stopped automatically of manually depending on the model. Then the bag is declamped and passed on to the stitching machine.
One of the special feature of the PREMIUM Bag Weigher is the flying dust at the time of filling the bag does not come outside the equipment as suitable dust seal is provided which acts as aspirator.
Angle of Repose of some of the Common Materials
Technical Details
| MODEL | PBW-MS | PBW-AS | PBW-EPS |
| 01. Number of Valves | 1 | 2 | 2 |
| 02 A. Weight Range | 25 Kg to 100 Kg | 15 Kg. to 100 Kg. | 10 Kg. to 100 Kg |
| 02 B. Bagging rate Bags/Minute | 2/3 | 4/5 | 8/12 |
| 03. Accuracy under working condition | ± 150 Gms | ± 100 Gms. | ±100 Gms. |
| 04. Accuracy at full Capacity | ±0.15% | ± 0.1% | ± 0.1 % |
| 05. Provision of Flow rate adjustment | Not Provided | Provided | Provided |
| 06. Actutation | Manual | Manual | Electro Pneumatic |
| 06. Final Stopping of flow of material | Manual | Automatic | Automatic |
| 06. Cumulative Bag Counter | Not Provided | Provided Mechanica | Provided Electrical |
| 06. Suitability for free flowing material | Good | Good | Good |
| 06. Suitability for slight sticky material | Good | Good with Screw / Belt feeder | Good with Screw / Belt feeder |
